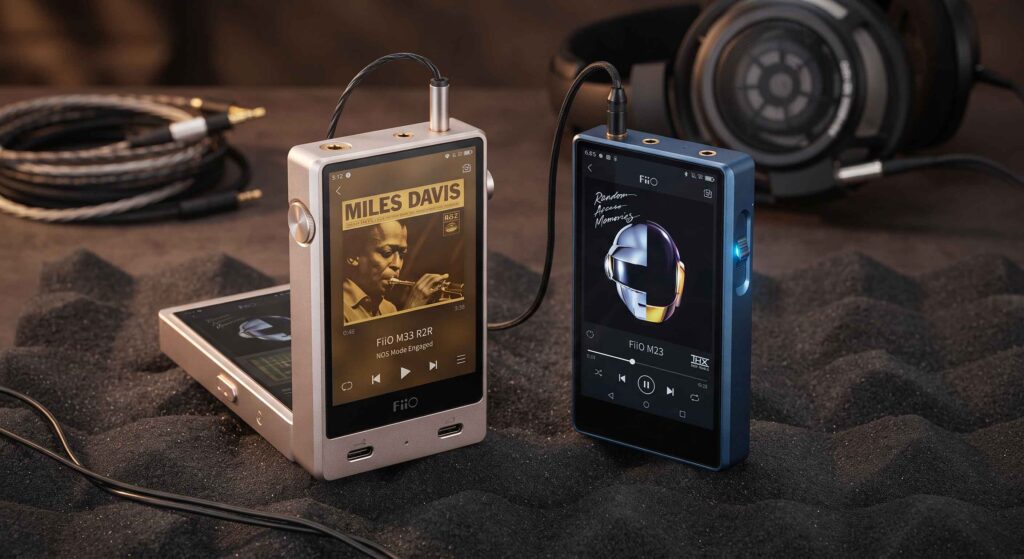

When evaluating the FiiO M33 R2R vs FiiO M23, audiophiles are faced with a classic choice between vintage R2R warmth and clinical AKM transparency. In the sub-$1,000 portable digital audio player (DAP) market, FiiO dominates the conversation with these two distinct philosophies.
In this head-to-head comparison, we look past the spec sheets and dive into real-world handling, power delivery, software performance, and actual sound differences to help you decide which player deserves a spot in your setup.
💡 Money-Saving Tip: Flagship DAPs are a major investment. Before checking out, make sure to claim active store and platform discount vouchers. Check out our verified AliExpress Promo Codes & Exclusive Coupons to save big on your audio gear!
FiiO M33 R2R vs. FiiO M23: Quick Specifications
| Specification Shootout | ||
|---|---|---|
| Feature | FiiO M33 R2R | FiiO M23 |
| Price | $700 | $700 |
| DAC Architecture | 24-bit Discrete R2R Resistor Network (OS/NOS modes) | AKM AK4499EX + AK4191EQ Delta-Sigma |
| Amplification | High-output discrete stage | THX AAA 78+ Circuitry |
| OS & Processor | Android 13, 8GB RAM, Snapdragon 680 | Android OS, Bit-Perfect SRC Bypass |
| Internal Storage | 128GB Built-in + MicroSD Slot | MicroSD Expansion Slot |
| Max Power (Balanced) | Up to 1,100mW (Super High-Gain Desktop Mode) | Up to 1,000mW (Desktop Mode) |
| Battery Life | ~15 hours (Single-ended) | ~9 hours (Balanced) |
Build Quality, Form Factor & Controls
Both players feature a premium aluminum chassis with glass backing, but real-world ergonomics set them apart:
- FiiO M33 R2R Review Notes: Weighing in at 258g, the M33 feels substantial and durable in hand. It features a crisp 5.5-inch display, a matching leather case with a magnetic closure, and a factory-fitted glass screen protector. However, due to R2R power conversion inefficiency, the chassis runs moderately warm during desktop playback and toasty during bedside listening.
- FiiO M23 Ergonomics: Noticeably lighter and more pocketable. Its signature design feature is the side-mounted capacitive touch-volume slider. While convenient for rapid adjustment, it can lead to accidental volume bumps in your pocket—though FiiO allows you to customize or lock touch sensitivity in settings.
Power Output & Desktop Mode
Neither player will leave you wanting for amplification power. Both devices incorporate a dedicated secondary USB-C port for Desktop Mode, drawing wall power directly while completely bypassing the internal battery to preserve its long-term health.
- M33 R2R: Delivers up to 470mW single-ended and over 1,100mW balanced in super high-gain mode, driving power-hungry planar headphones with ease.
- FiiO M23 Specs: Pushes roughly 1,000mW per channel via THX AAA 78+ amplification, capably driving demanding summit-fi headphones like the Modhouse Tungsten at around 80% volume.
Software & Streaming Experience
Our FiiO M33 R2R vs FiiO M23 testing shows both units offer open Android operating systems with full Google Play Store support. You can effortlessly stream via Tidal, Qobuz, Apple Music, or utilize dedicated local engines like Poweramp.
Both players bypass Android’s sample rate conversion (SRC) for bit-perfect playback and feature an advanced 10-band system-wide parametric equalizer (PEQ) that applies your custom curves across all installed apps.
Sound Quality: R2R vs. AKM Delta-Sigma
The core sonic distinction comes down to the converter topology:
- FiiO M33 R2R Sound: Uses a discrete resistor ladder with Oversampling (OS) and Non-Oversampling (NOS) modes. In level-matched blind tests, it delivers a smooth, fatigue-free signature. The NOS mode introduces a minor high-frequency roll-off (-2.4dB at 20kHz) that softens harsh recordings. However, ultra-sensitive IEMs may pick up a slight noise floor on the 4.4mm balanced output.
- FiiO M23 Sound: Features AKM AK4499EX DACs with THX amplification, achieving pristine, clinical neutrality with pitch-black background silence. It delivers razor-sharp instrument separation and precise transient snap across all genres.
Check Current Prices & Availability
FiiO M33 R2R
FiiO M23
💰 Want the Best Price on FiiO Audiophile Gear?
High-end DAPs rarely go on standard sales, but you can shave a significant amount off the retail price by combining platform vouchers and store coupons during major global shopping events.
Conclusion: Which One Should You Buy?
When comparing the FiiO M33 R2R vs FiiO M23 at their shared $700 price point, your ideal choice depends on how and where you listen:
Choose the FiiO M33 R2R if you appreciate discrete ladder DAC engineering, want 128GB of internal storage out of the box, and favor a smoother, analog-leaning signature with superior single-ended battery longevity.
Choose the FiiO M23 if you want a lighter, more pocketable daily player with zero background noise for sensitive IEMs and the clinical transparency of AKM Velvet Sound and THX amplification.
